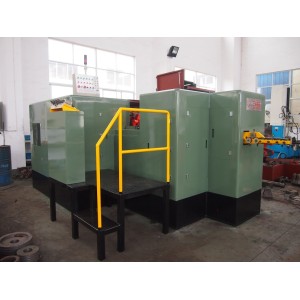

Three Die Three Blow Bolt Cold Heading Machine MWBF Series
Three Die Three Blow Bolt Cold Heading Machine MWBF Series
| Categories | Multi-station Bolt Cold Heading Machine MWBF Series |
|---|---|
| Brand | Metalwork Equipment |
| Model | SJBF |
| FOB port | Shanghai, Ningbo |
| Terms of Payment | L/C, D/A, D/P, T/T |
| Update Time | 2022/9/25 |
Detail Information
| SPECIFICATION/MODEL | SJBF83S | SJBF103S | SJBF103SL | SJBF133S | SJBF133SL | SJBF163S | SJBF163SL | SJBF203S | SJBF203SL | SJBF203SLL | SJBF243S | SJBF243SL | SJBF243SLL | SJBF273S | SJBF303S | ||
| FORGING STATION | 3 | ||||||||||||||||
| CUT-OFF DIA.MAX. （mm) | 10 | 12 | 15 | 18 | 23 | 29 | 34 | 38 | |||||||||
| CUT-OUT LENGTH MAX.（mm) | 130 | 180 | 230 | 185 | 240 | 270 | 400 | 270 | 400 | 445 | 290 | 370 | 460 | 400 | 450 | ||
| KICK-OUT LENGTH MAX.(mm) | 120 | 175 | 225 | 180 | 225 | 230 | 335 | 230 | 335 | 370 | 235 | 340 | 410 | 340 | 390 | ||
| P.K.O.LENGTH MAX. （mm) | 23 | 30 | 36 | 30 | 35 | 36 | 60 | 35 | 60 | 70 | 35 | 60 | 60 | 60 | 70 | ||
| CUT-OFF QUILL(D×L) (mm) | 38×79 | 40×80 | 40×80 | 46×80 | 60×100 | 60×120 | 60×120 | 75×120 | 90×140 | 110×140 | 115×140 | ||||||
| MAIN DIE HOLE (D×L) (mm) | 70×135 | 80×135 | 80×240 | 93×190 | 93×240 | 100×240 | 100×360 | 125×240 | 125×360 | 125×420 | 160×250 | 160×370 | 160×450 | 178×385 | 195×420 | ||
| DIES PITCH (mm) | 138 | 174 | 195 | 210 | |||||||||||||
| PUNCH HOLE (D×L) (mm) | 45×111 | 50×130 | 50×190 | 60×170 | 60×200 | 75×200 | 75×232 | 90×190 | 90×240 | 90×290 | 105×200 | 105×232 | 106×270 | 120×250 | 135×280 | ||
| RAM STROKE(mm) | 200 | 250 | 360 | 270 | 360 | 360 | 500 | 360 | 500 | 580 | 360 | 500 | 600 | 500 | 580 | ||
| FORGING POWER (ton) | 65 | 85 | 90 | 130 | 200 | 215 | 265 | 300 | 320 | 360 | 420 | 450 | 550 | 620 | |||
| SIZE | M8 | M10 | M12 | M16 | M20 | M24 | M27 | M30 | |||||||||
| PRODUCTS | MAX.LENGTH(mm) | 100 | 150 | 200 | 150 | 200 | 200 | 300 | 200 | 305 | 360 | 200 | 300 | 380 | 300 | 355 | |
| MIN.LENGTH (mm) | 20 | 30 | 50 | 40 | 50 | 50 | 100 | 40 | 100 | 100 | 60 | 100 | 100 | 100 | 100 | ||
| MAX.OUTPUT(pcs/minute) | 200 | 175 | 110 | 125 | 100 | 100 | 65 | 90 | 60 | 55 | 70 | 55 | 45-50 | 45 | 40-45 | ||
| MAIN MOTOR (HP) | 30 | 40 | 40 | 50 | 50 | 75 | 100 | 100 | 125 | 125 | 125 | 150 | 150 | 175 | 200 | ||
| APPROX.WT.（ton) | 14 | 20 | 24 | 25 | 30 | 45 | 56 | 65 | 75 | 82 | 90 | 125 | 142 | 135 | 155 | ||
