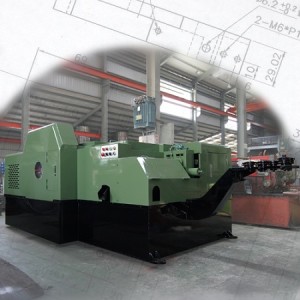

6 Stations Longer Stroke Nut Former MWNFL Series
6 Stations Longer Stroke Nut Former MWNFL Series
| Categories | Multi-station Nut Cold Heading Machine MWNFL Series |
|---|---|
| Brand | Metalwork Equipment |
| Model | SJNFL |
| FOB port | Shanghai, Ningbo |
| Terms of Payment | L/C, D/A, D/P, T/T |
| Update Time | 2022/5/23 |
Detail Information
| Model Specification | SJNF 8B-6SL | SJNF 11B-6SL | SJNF 14B-6SL | SJNF 17B-6SL | SJNF 19B-6SL | SJNF 22B-6SL | SJNF 24B-6SL | SJNF 28B-6SL | SJNF 33B-6SL | SJNF 36B-6SL | SJNF 41B-6SL | SJNF 45B-6SL | SJNF 50B-6SL |
| Forging Stations | 6 | 6 | 6 | 6 | 6 | 6 | 6 | 6 | 6 | 6 | 6 | 6 | 6 |
| Cut-Off-Dia.(Max)(mm) | 8 | 11 | 16 | 17 | 19 | 21 | 24 | 28 | 32 | 36 | 40 | 45 | 50 |
| Cut-Off-Length.(Max)（mm) | 8 | 12 | 20 | 22 | 32 | 30 | 40 | 45 | 60 | 70 | 80 | 80 | 80 |
| Dies Pitch （mm) | 38 | 50 | 60 | 70 | 80 | 90 | 100 | 120 | 140 | 150 | 165 | 180 | 195 |
| Ram Stroke（mm) | 50 | 60 | 120 | 130 | 160 | 180 | 200 | 220 | 240 | 280 | 280 | 360 | 360 |
| Kick-Out-Length.(Max) (mm) | 20 | 20up | 40up | 40up | 50up | 50up | 50up | 50up | 60up | 60up | 60up | 60up | 60up |
| Forging Power(TON) | 35 | 63 | 95 | 125 | 150 | 170 | 275 | 350 | 450 | 600 | 680 | 780 | 880 |
| Products NUT(DIN) (ANSI) | M3-M5 ＃4-＃9 | M3-M6 ＃4-5/16 | M6-M8 1/4-3/8 | M8-M10 5/16-3/8 | M8-M12 3/8-1/2 | M10-M14 3/8-9/16 | M12-M16 7/16-5/8 | M16-M18 7/16-7/8 | M16-M22 5/8-7/8 | M20-M24 5/8-1 | M22-M27 7/8-1 | M24-M30 7/8-1&1/8 | M27-M32 1-1&1/4 |
| Production Rate (pcs/min) | 200-230 | 160-180 | 120-140 | 100-120 | 90-120 | 80-100 | 75-90 | 65-85 | 60-80 | 55-70 | 45-60 | 40-50 | 40-50 |
| Main Motor(HP) | 10 | 15 | 30 | 40 | 50 | 50 | 75 | 100 | 150 | 150 | 200 | 300 | 400 |
| Lubrication Motor(HP） | 1 | 1 | 2 | 2 | 2 | 2 | 1*2 | 1*2 | 2*1 1*1 | 2*1 1*1 | 3*1 1*1 | 3*1 1*1 | 3*1 1*1 |
| Lubricant | 750 | 850 | 950 | 1100 | 1300 | 1500 | 1650 | 1750 | 1900 | 2100 | 2500 | 3000 | 3000 |
| Approx.Weight(TON) | 4 | 5.2 | 8.5 | 10.5 | 16 | 24 | 30 | 40 | 48 | 60 | 80 | 140 | 150 |
| Machine Dimensions(m) (L*W*H) | 2.1*1.6*1 | 2.7*1.7*1.1 | 3.3*2.1*1.4 | 3.5*2.3*1.5 | 4.2*2.3*1.5 | 4.5*2.7*1.7 | 5.3*2.9*1.9 | 5.5*2.9*2.1 | 6.2*3.2*2.2 | 7*3.1*2.3 | 7.8*3*2.6 | 9*3.5*2.7 | 9*3.5*2.7 |
